Flexible mica sheet

Flexible mica sheet

by Pamica/ on 2020-01-21

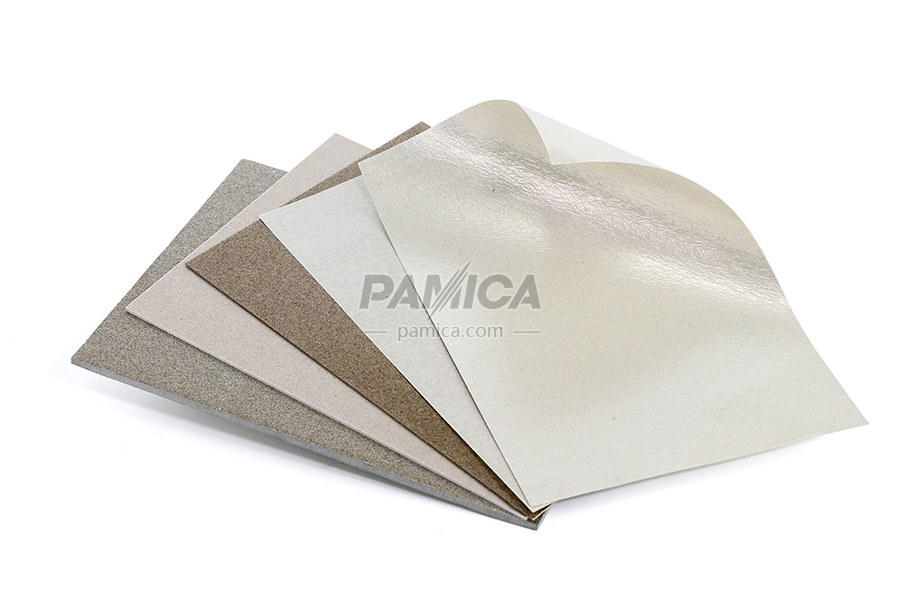

Flexible mica sheet for heater consists of Pamica® mica paper, impregnated with high temperature resistance silicone resin after melting and laminating process. It can be used in high temperature environment 500℃-700℃ by its outstanding thermal and electrical resistance properties.



Type Item Feature
PB5161 Full Flexible Muscovite Mica Sheet Soft and reelable
PJ5161 Full Flexible Phlogopite Mica Sheet Soft and reelable
PB5162 Flexible Muscovite Mica Sheet Stiff and smooth, reelable
PJ5162 Flexible Phlogopite Mica Sheet Stiff and smooth, reelable

Type PB5161 PJ5161 PB5162 PJ5162 Test Standard
Mica content % ≥90 ≥90 ≥90 ≥90 IEC60371
Bond content % ≤10 ≤10 ≤10 ≤10 IEC60371
Density g/cm3 1.7-2.15 1.7-2.15 1.7-2.15 1.7-2.15 IEC60371
Temperature resistance Continuous ℃ 500 600 500 600 IEC60371-2
Intermittent ℃ 700 800 700 800 --
Heat loss at 500 ℃ % ≤3.5 ≤3.5 ≤3 ≤3 EC60371
Dielectric strength KV/mm ≥15 ≥14 ≥15 ≥14 IEC60243
Volume resistance performance Ω/m ≥1010 ≥1010 ≥1010 ≥1010 IEC6093

Note: These technical data are average results of laboratory tests conducted under standard procedures and are subject to variations, and do not

constitute a warranty or representation for which we assure legal responsibility.
