Calcined mica paper
Calcined mica paper

Calcined mica paper

by Pamica/ on 2020-01-21

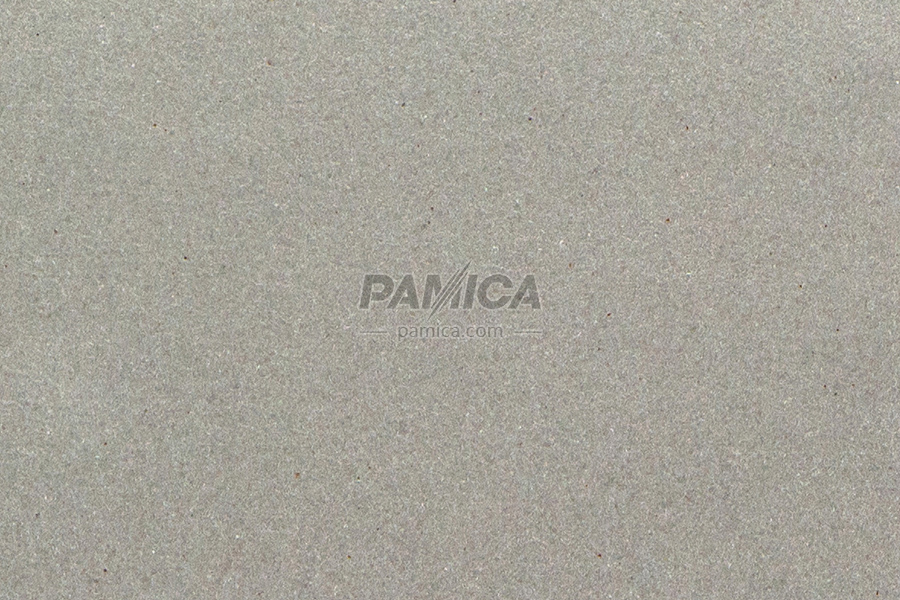

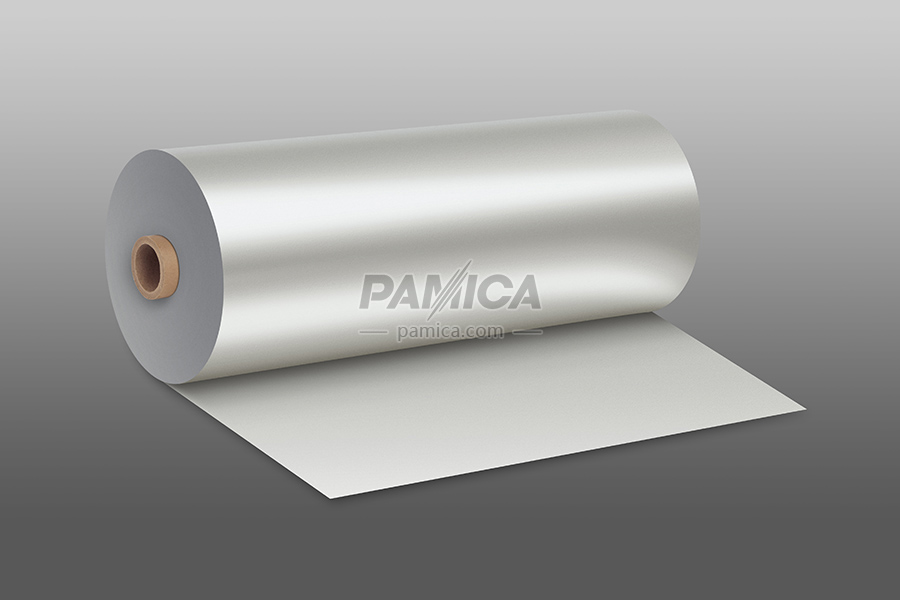

Yunshui® Calcined muscovite paper maintains the excellent electrical and high-temperature properties of natural mica, and can be impregnated and composite with fiberglass cloth, thin films, etc. Through epoxy or organic silicon resin to form high-quality rolls or strips of high-temperature resistant insulation materials.


Properties:
  • Good dielectric performance with low dielectric loss.
  • Excellent temperature resistance performance.
  • Higher mechanical strength.
  • Can replace chemical pulp cooked paper.



Calcined muscovite mica paper for motor tape

Q/：CM501-2
GB.：MPM2-L1
IEC.：MPM2

Nominal value Average
tolerance 		Individual
tolerance 		Air porosity Penetration Conductivity of
water extract 		Mass loss Tensile strength Dielectric strength
(g/m2) (%) (%) (S/100ml) (Time) (μS/㎝) (%) (N/㎝) (KV/㎜)
50 ±3 ±5 ≤900 ≤20 15 0.5 ≥3 ≥24
60 ±3 ±5 ≤1000 ≤25 15 0.5 ≥3.2 ≥24
70 ±3 ±5 ≤1100 ≤30 15 0.5 ≥3.3 ≥24
100 ±3 ±5 ≤2100 ≤55 15 0.5 ≥3.9 ≥26
120 ±3 ±5 ≤3000 ≤65 15 0.5 ≥4.0 ≥26
160 ±3 ±5 ≤3500 ≤90 15 0.5 ≥6.0 ≥26
Note: These technical data are average results of lahoratory tests conducted under standard nrocedures and are subject to variations, and do not
constitute a warranty or representation for which we assure legal responsibility.
